Hexagonal wire netting weaving machine

Gabion mesh machine

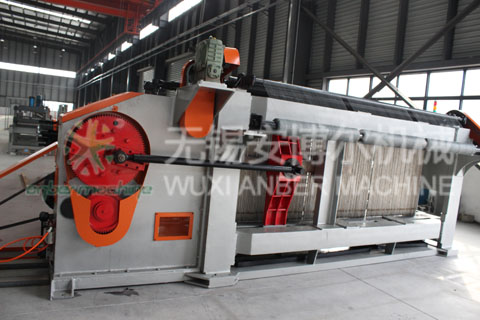

Hexagonal Wire Netting Machine:

Hexagonal mesh machine, also named chicken mesh machine, is the special equipment to produce the hexagonal wire netting mesh. The machine has features of reasonable design, simple structure, stable operation, good performance, convenient repair. Typical application of hexagonal wire netting mesh: fence mesh for feeding of poultry, such as chicken, duck, goose, rabbit, etc;

Bobbion machine	Hexagonal wire netting machine	Chicken mesh netting machine

1. Hexagonal wire netting machine
2. Bobbin frame
3. Recoiling machine(with tension device)
4. Double-layer spiral coiling machine
5. Wire pay off for spiral coiling machine
6. Bobbin making machine
7. Wire pay off frame for bobbin machine

Model	Spec.	Mesh size (mm)	Max. width (m)	Wire dia. (mm)	Twist number	Main shaft speed (r/min)	Power (kw)	Theory speed (m/h)
LNWL-1015-2	1/2’	15x18	1200	0.80	3	33	3	51
LNWL-1018-2	5/8’	18x25		0.90	3			67
LNWL-1022-2	3/4’	22x33		1.20	3/5			83
LNWL-1027-2	1’	27x41			3/5			100
LNWL-1032-2	1/1/4’	32x52			3/5			122
LNWL-1039-2	1/1/2’	39x61			3			142
LNWL1055-2	2’	55x70			3			162
LNWL1078-2	3’	78x86			3/5			194
LNWL-2015-2	1/2’	15x18	2200	0.80	3			51
LNWL-2018-2	5/8’	18x25		0.90	3			67
LNWL-2022-2	3/4’	22x33		1.20	3/5			83
LNWL-2027-2	1’	27x41		1.20	3/5			100
LNWL-2032-2	1/1/4’	32x52			3/5			122
LNWL-2039-2	1/1/2’	39x61			3			142
LNWL-2055-2	2’	55x70			3			162
LNWL-2078-2	3’	78x86			3/5			194
LNWL-3027-2	1’	27x41	3000	0.80	3	33	3	67

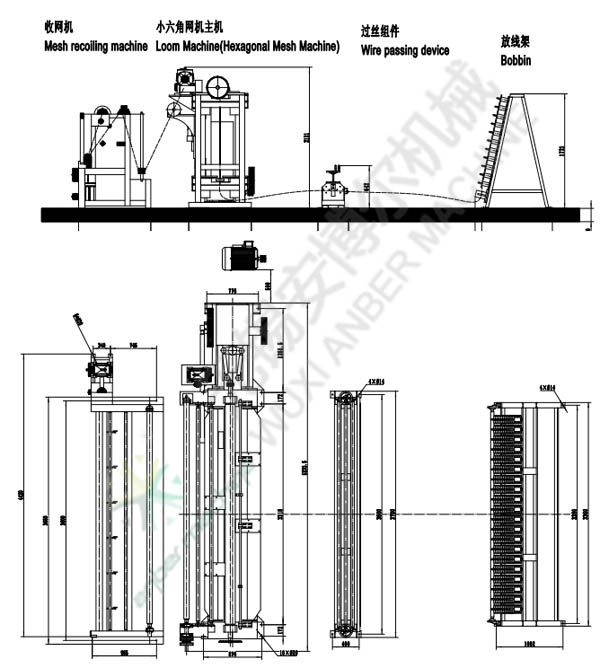

Layout of hexagonal mesh machine:
