Chain link fence machine:

The chain link fence machine is welded of high quality steel and channel steel with PLC control. Its knife molds has high hardness to ensure the stability and beauty of the network and it has high cutting precision with easy operation. The chain link machine using either galvanized wire or PVC coated wire materials. It can produce both standard and compacted rolls by the adjustment in the coiling speed.

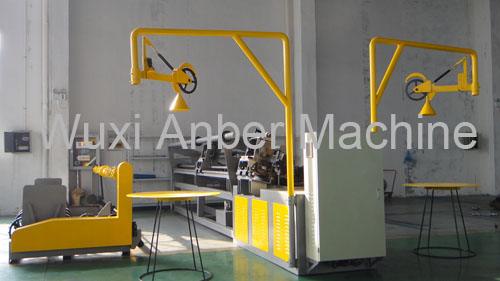

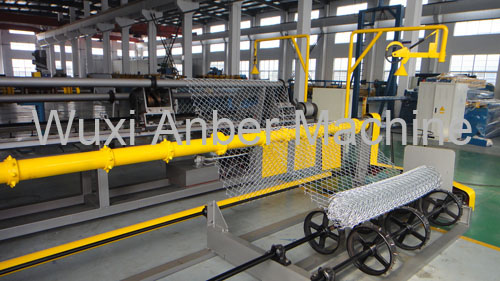

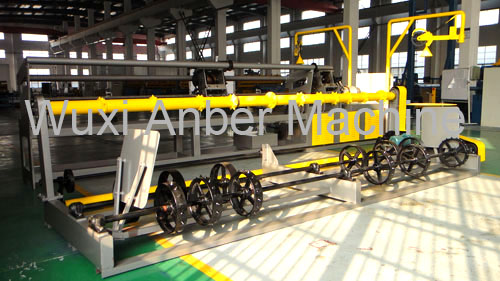

chain link fence machine chain link fence weaving machine wooving part Rabitz mesh making machine
chain link fence machine chain link fence weaving machine wooving part Rabitz mesh making machine

Width scope of weaving 4 m 2m
Diameter of wire 1.8-4.0 mm (depend on the mesh size)
Mesh Size 30-80mm
Speed of the axle of shaped knife 275-1100 rpm (variable speed)
Width of net 2, 3, 4m 2m
Power consumption Seven motor, one 3.0KW, one 1.5KW, two 0.75KW, one 0.55KW and two 0.12kw 5.5kw
Output 210㎡-240㎡/h
Suitable wire to the machine Galvanized wire, drawn wire, steel wire, PVC wire
Weight of equipment 4200 kg
Mesh opening size 1”-3-1/2”
Outer size 6700*1430*1800 mm 4700*1430*1800mm
One side or both sides of the end of the net hole is twisted or with burr in edge

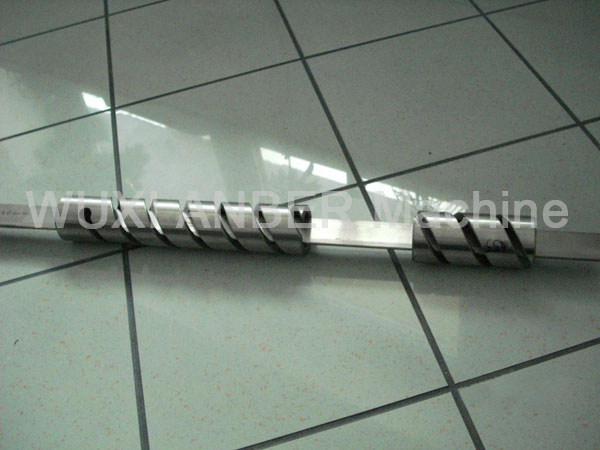

Knife of chainlink machine:
勾花网 勾花网
