Hexagonal wire netting weaving machine

Gabion mesh machine

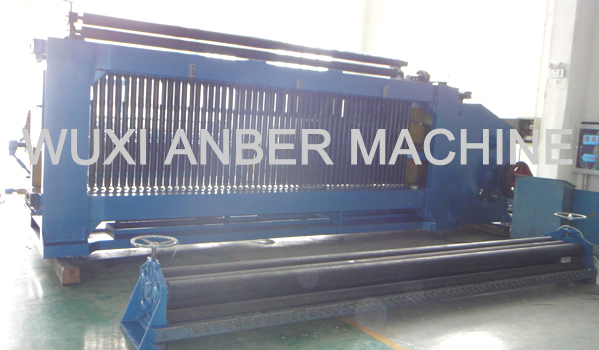

Gabion mesh machine:

ABE-2 series Anber gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available. The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection, build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.

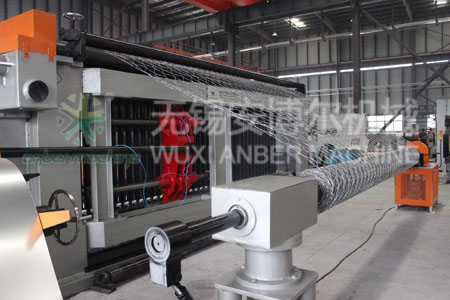

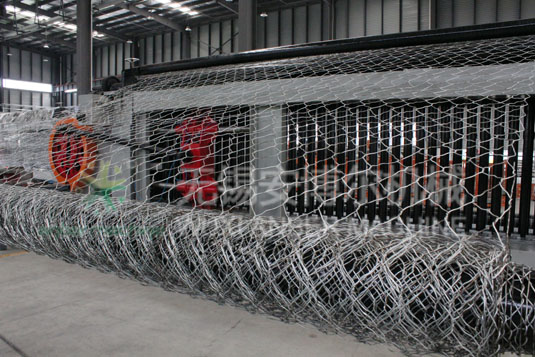

Gabion mesh machine	Gabion mesh making machine (back view)	Gabion box mesh machine

Type	Mesh opening	Max Width	Wire Diameter	Strand	Speed	Power	Theory speed
ABE23-60-2	60*80 mm	2300 mm	1.6-3 mm	3	25 r/min	11 kw	165 m/h
ABE 23-80-2	80*100 mm	2300 mm	1.6-3 mm	3	25 r/min	11 kw	195 m/h
ABE 23-100-2	100*120 mm	2300 mm	1.6-3.2 mm	3	25 r/min	11 kw	225 m/h
ABE -23-120-2	120*150 mm	2300 mm	1.6-3.5 mm	3	20 r/min	11 kw	225 m/h
ABE 33-60-2	60*80 mm	3300 mm	1.6-2.8 mm	3	25 r/min	15 kw	165 m/h
ABE 33-80-2	80*100 mm	3300 mm	1.6-3 mm	3	25 r/min	15 kw	195 m/h
ABE 33-100-2	100*120 mm	3300 mm	1.6-3.2	3	25 r/min	15 kw	225 m/h
ABE 33-120-2	120*150 mm	3300 mm	1.6-3.5	3	20 r/min	15 kw	225 m/h
ABE 43-60-2	60*80 mm	4300 mm	1.6-2.8	3	25 r/min	22 kw	165 m/h
ABE 43-80-2	80*100 mm	4300 mm	1.6-3	3	25 r/min	22 kw	195 m/h
ABE 43-100-2	100*120 mm	4300 mm	1.6-3	3	25 r/min	22 kw	225 m/h
ABE 43-120-2	120*150 mm	4300 mm	1.6-3.2	3	20 r/min	22 kw	225 m/h

Outside size and Weight

Mesh width (mm)	Machine (mm)	Wire dealing machine(mm)	Mesh winding machine(mm)	Weight
2300	5780*1300*2300	4850*680*800	4880*800*1140	635kg
3300	6780*1300*2300	3850*680*800	4880*800*1140	770kg
4300	7780*1300*2300	2850*680*800	4880*800*140	905kg

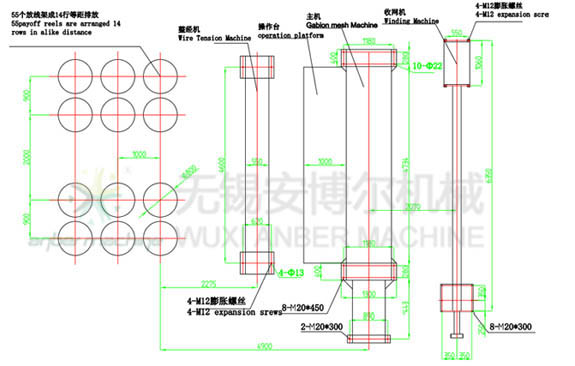

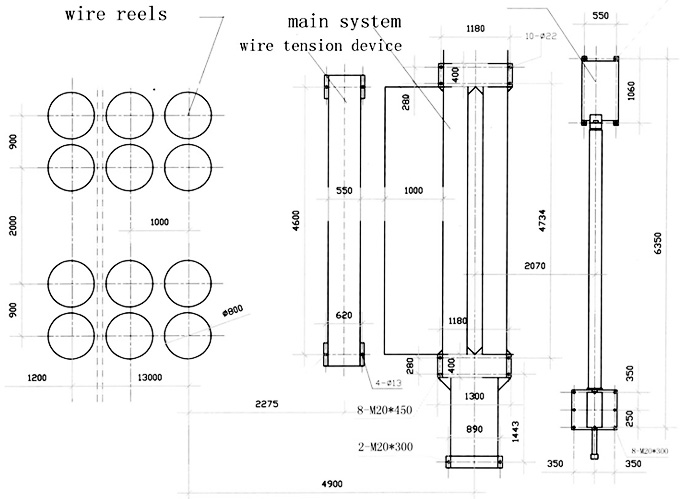

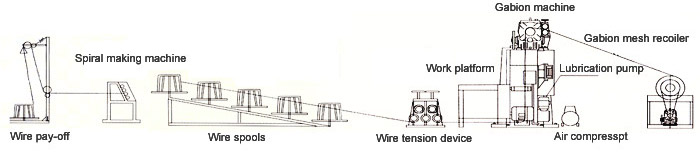

Layout of automatic gabion mesh machine:


The finished products (Gabion mattress):
