Roll mesh PVC Coating Line:

This Powder Coating Line is used to provide an anti-corrosive surface treatment for steel wire roll mesh.
Process flow: Manual feeding - Pre-heating - Auto powder immersion - Curing - cool the coated mesh - Manual discharging - Manual shaping correction - Quality control - Final package
Technical Parameters:
(1) Application: Apply powder coatings on welded wire mesh in roll package
(2) Max. size of roll mesh: Length 30000mm * Width 2500mm
(3) Productivity: ≥ 3-5m/min
(4) Total installed capacity: 360KW
(5) Average power consumption: about 300KW/h
(6) Water Consumption: 2.5-3m3/h (recycled water)
(7) Factory Building: ≥ Length 30000mm * Width 10000mm * Height 5000mm
Composition of a complete coating line:
(1) Auto electrical pre-heating & curing furnace;
(2) Mesh de-coiler, convey type mesh re-coiler;
(3) Vibration generator, dipping PVC coated fluidized bed, spray type water cooling device, dust removing device;
(4) Power supply control equipment;
roll mesh PVC coating line roll mesh PVC coating line Roll mesh PVC coating line

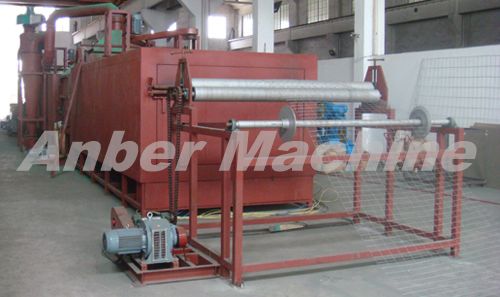

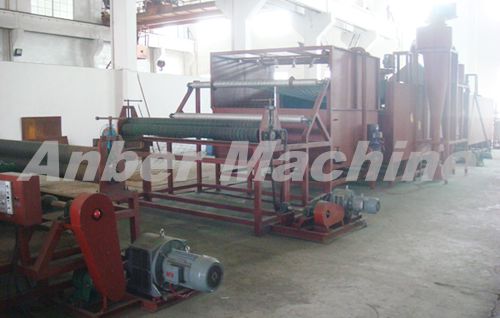

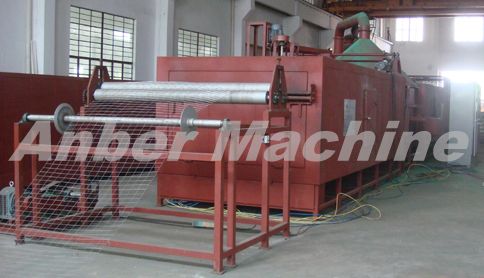

Roll mesh PVC coating line-1 Roll mesh PVC coating line-2 Roll mesh PVC coating line-3
roll mesh PVC coating line Roll mesh PVC coating line Roll mesh PVC coating line

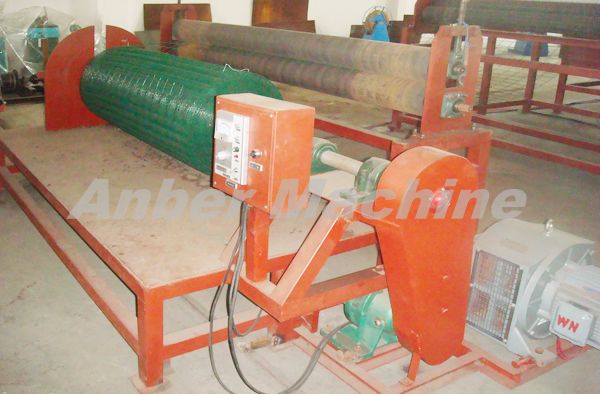

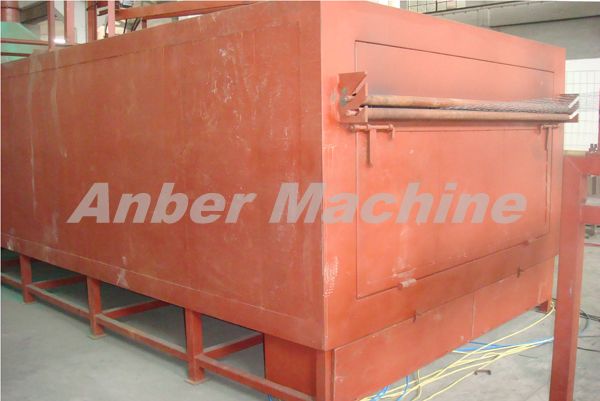

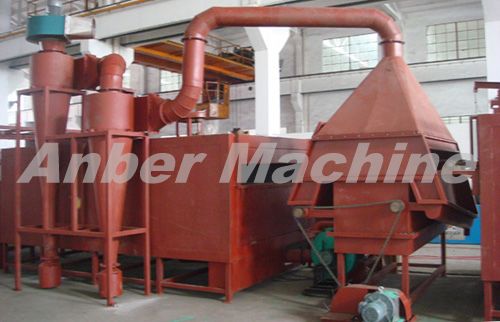

Fluid bed of Roll mesh PVC coating line Mesh coil of Roll mesh PVC coating line Furnace of Roll mesh PVC coating line
roll mesh PVC coating line roll mesh PVC coating line roll mesh PVC coating line

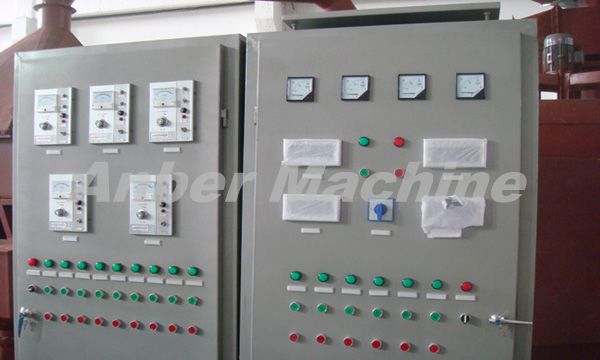

Mesh feed-in of Coil Mesh PVC coating line Control cabinet of
Roll mesh PVC coating line
Layout of Roll mesh PVC coating line
