Expanded metal mesh Machine:

Expanded metal mesh production line Expanded metal mesh machine Accessory machine Spare parts
The expanded metal mesh production line producing process is decoiler → expanded metal mesh machine →flatten machine →slitting machine →shearing machine →recoiler. According to your requirement, the process can be changed.

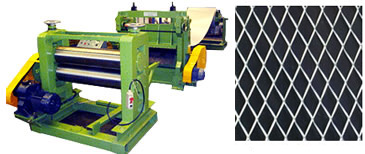

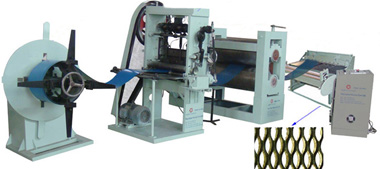

Expanded metal mesh production line in coils (New) Expanded metal mesh production line in coils (Old)
expanded metal mesh production line expanded metal mesh production line

Expanded metal mesh production line in pieces (New)
expanded metal mesh production line

Expanded Metal Punching Machine
ABE-8-2000
Expanded metal mesh machine
ABE-6-2500
Metal Expander
ABE-4.0-2000
expanded metal mesh machine Expanded metal mesh machine Expanded metal mesh machine
Thickness of material: Max. : 8mm
Maximum working width: 2500mm
Distance of feeding: 0-7mm
Punching speed: 45 strokes/min
S.W.D.: 10 - 80 mm
L.W.D.: 20 - 180 mm
Motor power: 30KW
Net Weight: 23T
Dimension: 3000x3500x2400mm
Thickness of material: Max. : 6mm
Maximum working width: 2500mm
Distance of feeding: 0.5-6mm
Pattern specification
S.W.D.: 10 - 80 mm
L.W.D.: 20 - 180 mm
Motor power: 22KW
Net Weight: 15T
Dimension: 3100x4138x2430mm
Thickness of material: 0.5-4mm
Maximum working width: 2000mm
Working speed: 60 strokes per minute
Distance of feeding: 0-4mm
Pattern specification
S.W.D.: 10 - 70 mm
L.W.D.: 20 - 150 mm
Motor power: 15KW
Net Weight: 12T
Dimension: 3600x2500x3000mm

Expanded Metal Punching Machine
ABE-2.5-2000
Expanded Metal Punching Machine
ABE-2-1500
Filter type expanded metal mesh machine
ABE-1.5-1250
expanded metal mesh machine
expanded metal mesh machine expanded metal mesh machine
Thickness of material: 0.5-2.5mm
Maximum working width: 2000mm
Working speed: 70 strokes per minute
Distance of feeding: 0-4mm
Pattern specification
S.W.D.: 8 - 50 mm
L.W.D.: 15 - 100 mm
Motor power: 11KW
Net Weight: 11T
Dimension: 3500x2400x2300mm
Thickness of material: Max. : 2mm
Maximum working width: 1500mm
Distance of feeding: 0-2.5mm
Punching speed: 120 strokes/min
S.W.D.: 12 - 40 mm
L.W.D.: 25 -80 mm
Motor power: 11KW
Net Weight: 6T
Dimension: 2870x990x2140mm
WIDTH:1250mm
PUNCHING FORCE:45T
Range of thickness:0.3mm-1.5 mm
MESH:SWD: 5mm-20mm
         LWD: 8mm-30mm
POWER:10KW
SPEED ADJUSTABLE MOTOR
SPEED:50-200 strokes/min

Filter type expanded metal mesh machine

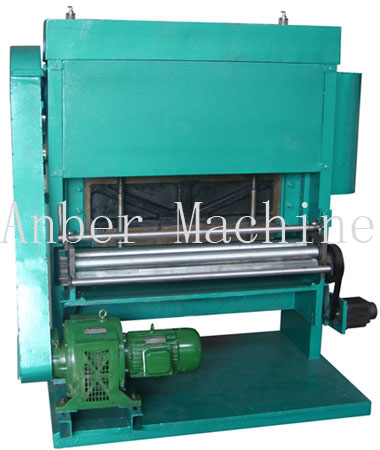

ABE-300-1000
Filter type expanded metal mesh machine

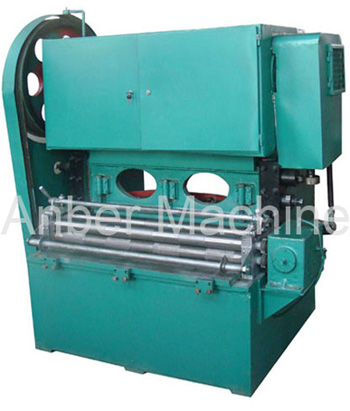

ABE-150-1000
Light type expanded metal mesh machine ABE-500
expanded filter mesh machine expanded filter mesh machine expanded metal punching machine
WIDTH:1000mm
Range of thickness:0.3mm-1.0mm
SWD: 2-13mm
LWD: 4mm-25mm
POWER:5.5KW
SPEED ADJUSTABLE MOTOR
SPEED:300 strokes/min
WIDTH:1000mm
Range of thickness:0.3mm-1.0mm
SWD: 2-13mm
LWD: 4mm-25mm
POWER:3KW
SPEED ADJUSTABLE MOTOR
SPEED: 150 strokes/min
Thickness of material: 0.1-1mm Maximum working width: 500mm
Distance of feeding: 0-4mm
Pattern specification
L.W.D.: Max. : 20 mm
Motor power: 2.2KW
Net Weight: 0.95T
Dimension: 1000x710x1450mm
UNCOILER Press roller/ Flatten machine RECOILER SLITTING MACHINE
decoiler for the expanded metal mesh machine
Loading Weight: 500kg or designed
Inner diameter: 500mm or designed
Type: limit control type
Width: 1000mm or designed
Press Roller: 270mm or designed
Motor: 380/220v x 50/60Hz x 7.5Hp
Loading Weight: 500kg or designed
Inner diameter: 500mm or designed
Type: limit control type
Working wide:1000mm or designed
Max. Thickness: 1.0mm
Motor: 380/220v x 50/60Hz
Type: Rolling Cutter Type or at customer's requirement
Expanded metal mesh machine Mould-1 Expanded metal mesh machine Mould-2 Expanded metal mesh machine Mould-3
expanded metal mesh machine mould expanded metal mesh machine ould expanded metal mesh machine mould

Expanded metal mesh machine Mould-4 Expanded metal mesh machine Mould-5 Expanded metal mesh machine Mould-6
expanded metal mesh machine mould expanded metal mesh machine mould expanded metal mesh machine mould

Bush of the expanded mwtal mesh machine Bush of the expanded metal mesh machine Bearing Bush of the expanded metal mesh machine
expanded metal mesh machine mould expanded metal mesh machine mould expanded metal mesh machine mould
