Double barbed wire machine:

This machine is mainly suitable for various strands of barbed wire, the material should be conform to the requirements of the GE/T343-94 standard "general use hot dip galvanized low carbon steel wire, the product is widely used in defense, railway, highway, agriculture animal husbandry and other industries.

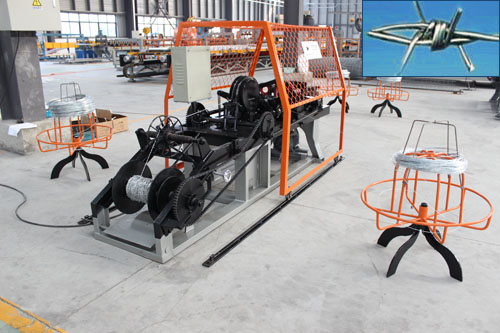

CS- A type barbed wire machine concludes of two parts, wire coiling and wire twisting, and matches with four wire de-coilers, the machine parts work coordination, movements smooth, flexible and reliable operation, and adopts advanced electronic counting control, is currently the only domestic production of barbed wire equipment. The machine production of the specifications of the barbed wire range are shown in table one.

barbed wire machine

No
Project
Unit
Parameter
1
Motor
type
Y100L2-4
2
Motor
KW
3
3
Main shaft speed
Turn/min
402
4
Barbed wire speed
Turn/min
470
5
Wire pulling speed
Turn/min
134
6
Wire take-up rotational speed
Turn/min
30-255
7
Main frame
mm
1900×1300×980
8
Wire take-up and twisting part
mm
1800×750×750

Barbed wire specification:
No
Project
Unit
Parameter
1
Barbed wire spacing
mm
70, 102
2
Braided wire diameter
mm
2.2-2.8
3
Barbed wire diameter
mm
1.8-2.2

Finished products:
