AC ARC Welder specification:

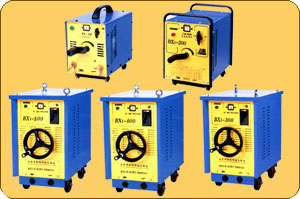

BX1- SERY AC ARC WELDER BX1 Sery AC ARC welder can be handoperated by one man, by using welding rod with welding flux, you can weld various low carbon steel、low-alloy steel pieces. The frequency is normally 50-60Hz, the welder can be simply adjusted, its welding current is ceaselessly adjusting, its noise is low and the welding performance is high, it can be adapted in various maintaining sites, welding steel or iron frame, manufacture works, etc.

Model		BX1-125	BX1-135* BX1-140*	BX1-160	BX1-200	BX1-250	BX1-300 BX1-315	BX1-400	BX1-500
Primary voltage		220V	220V	220V	220/380V	220/380V	220/380V	220/380V	380V
Secondary no-load voltage		52V	52V	60V	60V	60V	78V	78V	78V
Rated working voltage		25V	25.4V	26.4V	28V	30V	32V	36V	40V
Welding-current-regulated range		55-140A	55-140A	60-170A	70-210A	50-250A	60-320A	80-420A	100-520A
Rated duty cycle		20%	15%	15%	20%	20%	35%	35%	35%
Rated input capacity		6.5KVA	7KVA	10.5KVA	12.9KVA	17KVA	21.5KVA	31KVA	42KVA
Suitable Rod Diameter		1.5-2.5mm	1.5-2.5mm	2-3.2mm	2-4mm	2-5mm	2.5-6mm	2.5-7mm	3.2-8mm
Efficiency		80%	80%	80%	80%	84%	84%	85%	86%
Power factor		0.55	0.55	0.55	0.54	0.54	0.54	0.54	0.54
Dielectric rank		F	F	F	F	F	F	F	F
Weight		21kg	21kg	26kg	37kg	52kg	86kg	110kg	140kg
Overall dimension (mm)	L	380	380	380	450	480	580	630	680
	W	200	200	200	290	310	400	400	400
	H	320	320	320	430	460	640	660	660
